1.5 HP Electric/Hydraulic Power System & Components for M600 Series Bender

$1,575.00 - $1,625.00

BUILD IT YOUR WAY

Customize The Options To Get The Perfect Tool For Your Needs

1.5 HP Electric Hydraulic Power Unit

1.5 HP Electric Hydraulic Power Unit

9 Ton Hydraulic Ram for 1.5 HP (USA)

9 Ton Hydraulic Ram for 1.5 HP (USA)

$675.00

Description

Electric/Hydraulic is the more expensive of the 2 ways you can power a model 600 series tubing bender.
Currently lead time is Approx. 1 week.

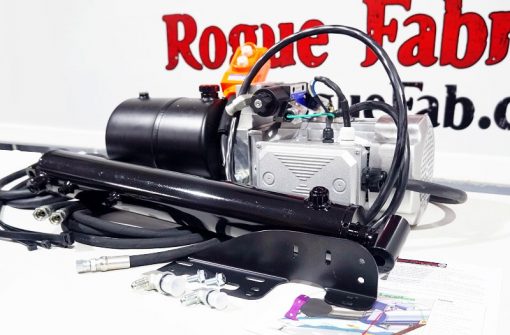

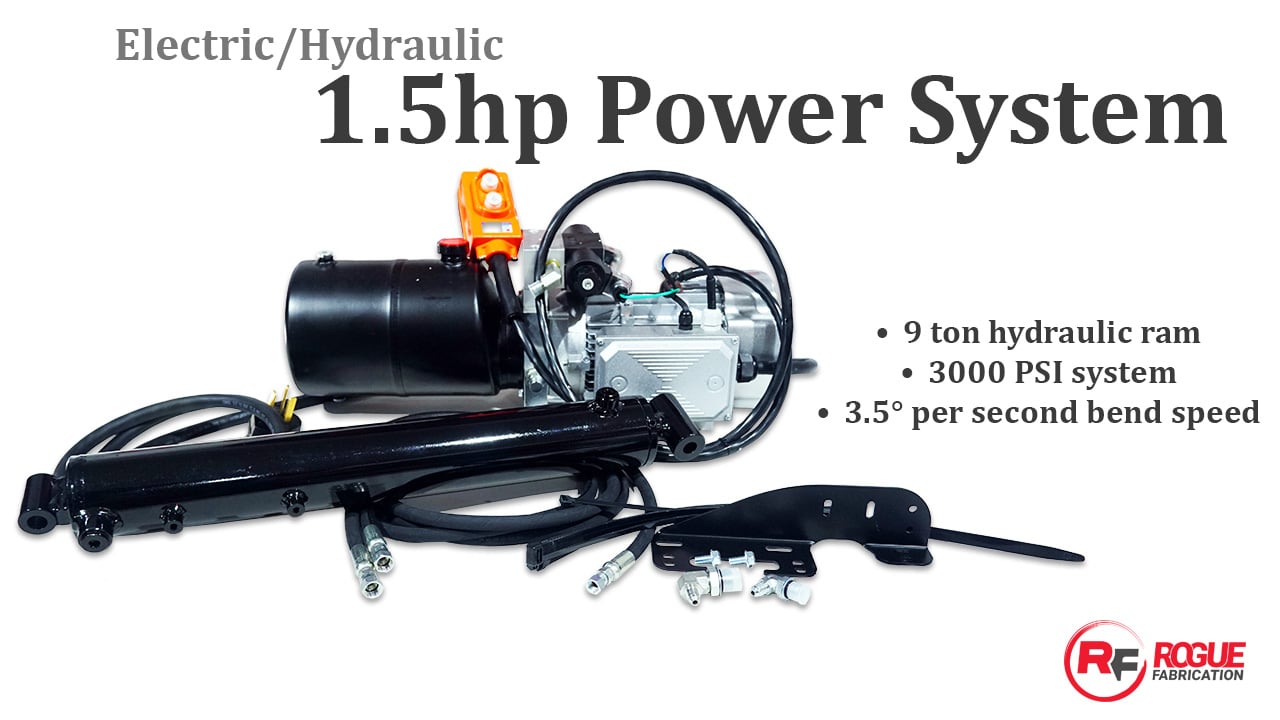

This 3000 PSI electric/hydraulic system was fully engineered to work with our bender. It features a 1.5 HP induction motor, hydraulic pump and steel reservoir, and a hydraulic cylinder (custom made in the USA) for the M600 series bender. This is the most affordable COMPLETE electric hydraulic power system on the market for a tubing bender. We assemble these systems right here in the US (the 1.5 HP power unit is imported, if you want a US-sourced power unit, check out our 2HP system!).

Bending speed: 3.5 degrees per second. This is about 3.3X the speed of an air powered system. This is fixed speed in both directions. Return speed is about 20% faster than extend (bending) speed. This unit is powered in both directions, unlike the power systems most of our competitors import whole and resell!

OPTIONS:

*SYSTEM FORCE: Choose 9 ton to include our hydraulic cylinder. IF for some reason you want this with no cylinder, pick none (extremely unlikely).

*POWER UNIT: Our 1.5 HP power units have a 10 ft power cord and come installed with a NEMA 6-50 plug. They carry a 90/30 day warranty (home/business), and are imported. They have a 2 button pendant control and are power in and power out (2 directional hydraulics). Amp draw is approximately 8.1 Amps. Choose none if you’re providing your own power unit and valve (again, not popular).

*CART BRACKETS: Just like you would expect, these allow you to hang your hydraulic power unit under the carts that we sell. Simple nuts and bolts installation once you drill 3 holes into your bender storage cart. Brackets are CNC laser cut P&O steel and formed on a CNC press brake. Black powder coat finish. Slotted holes throughout for easy adjustment and flexibility of installation based on hole placement. If you would like the bracket head over the the cart and storage section of the website.

Notes- This cylinder and auto stop doesn’t fit in the machine with the Thin Wall Attachment (TWA). The thin wall attachment is no longer offered. The auto stop is not currently offered on the 1.5 HP system. The 2HP system allows this option.

This system was designed from the ground up to be the optimal power source for our tubing bender. It is compatible with all revisions of our tubing bender. If you are tired of having operators in your shop scraping tube and valuable parts, this solution can pay for itself in scrap reduction! DOM and stainless tubing costs money, and so does time. This upgrade saves both.

Machine hydraulic power requirements: The 1.5HP Elec/Hydro system draws ~8.1 amps at 220-250 volts AC. The 2.0 HP system draws ~12.5 amps at 220-250 volts AC. Our systems are designed for 60hz power (contact us for 50hz options if needed). They can also run on 208V power. We can wire our 2HP system for 110V at your request, but it pulls over 25A and is a highly unpopular configuration.

Subscribe to our Youtube channel for more videos on this awesome upgrade. We will make more videos soon and you will want to be notified.

LINK – click to visit us on YouTube

We use our electric/hydraulic system in this video when we teach novices how easy our setup is to use. Let us show you in under 7 minutes:

***We don’t have any video of the 1.5HP system in action YET, but subscribe to our channel, we definitely will some day! Enjoy these videos of our 2.0 HP system, which is only slightly faster***

Want to see a whole project from start to finish, and even more bending tricks that are 100% unique to our design? Watch this video:

Here is a video showing how to make a roll bar (And using the 2 HP electric hydraulic system):

Please read our terms and FAQ for complete information about warranty, returns, and more.
