Complete Fabrication Shop ELITE Package

Description

Patented under USPTO 11478838 plus multiple other pending patents.

Current lead times: 1-2 weeks for elite packages containing benders, mandrel attachments, carts, and dies.  We are still wrapping up the development of our advanced press system, and they are expected to ship by Q2 2024.

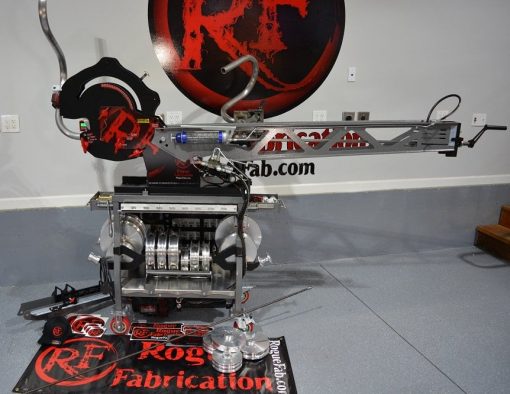

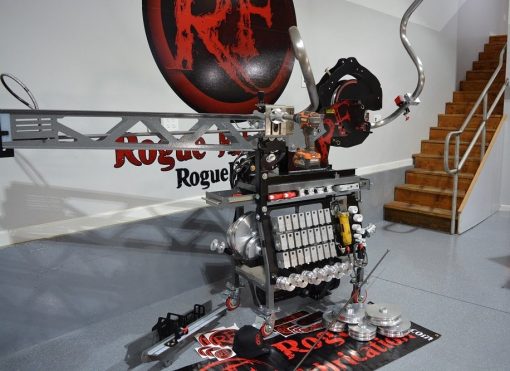

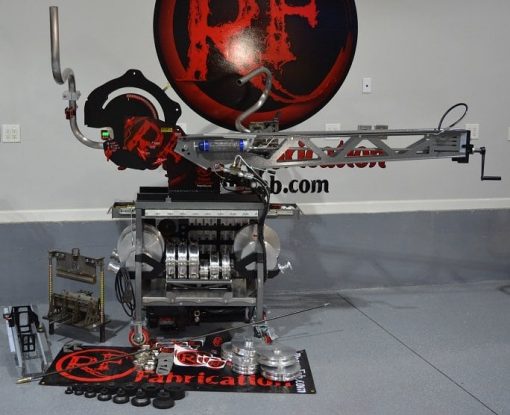

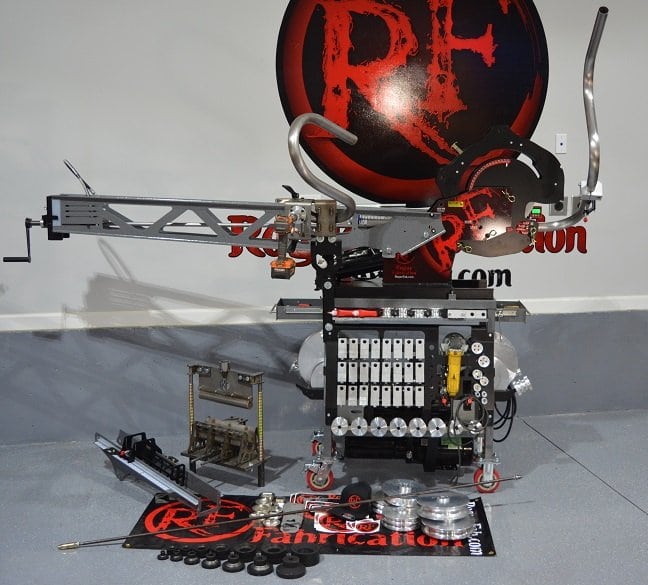

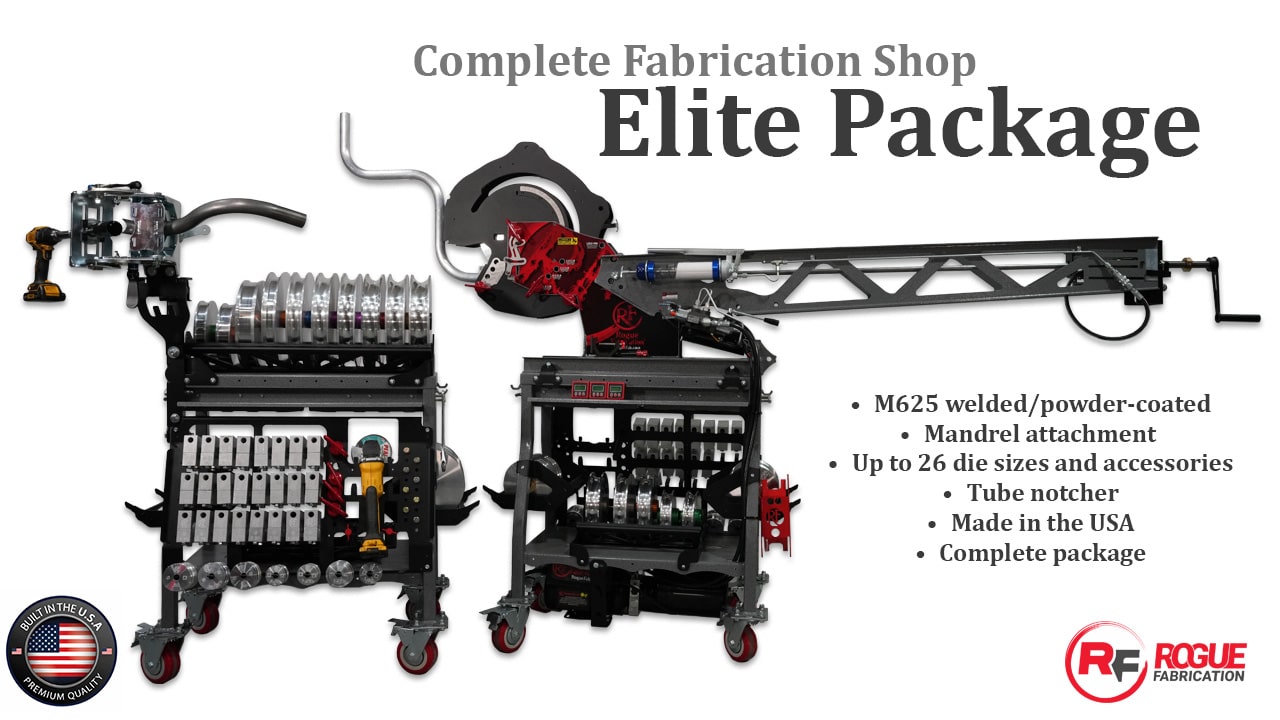

Our ELITE PACKAGE is intended for serious fabrication shops that need a complete tube and chassis fabrication tooling package. This setup includes our broadest range of professional-grade tooling. This versatile package includes our powder-coated Model 625 Tubing Bender with a beautiful vinyl wrap (it has machine operation instructions integrated right into the graphics), all necessary hardware, and degree indicators. This complete solution moves with you in your shop on our extremely stout (1000# max capacity) steel cart on casters with 2 storage drawers and 4 integrated racks to racks to keep EVERYTHING organized and accessible.

Dropdown menu option 1: Tube bender model

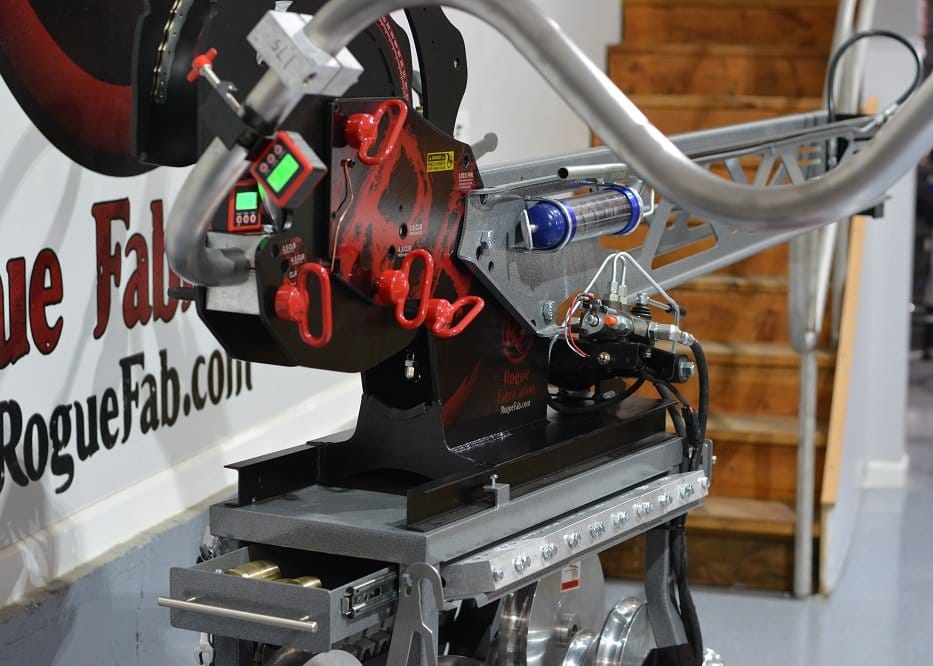

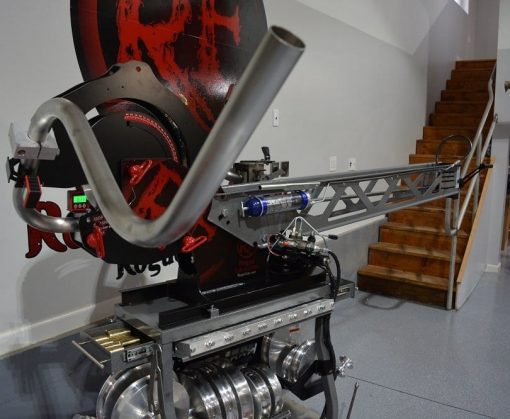

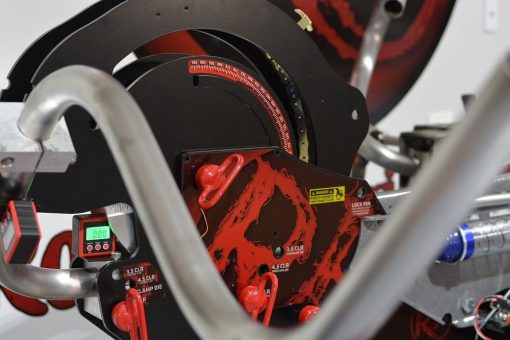

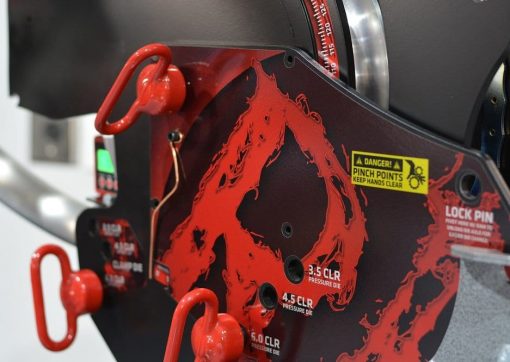

All configurations of the Elite package come with our welded and powdercoated xHD M625 bender. Capable of bending a maximum of 2″ OD x .250″ wall steel,  this machine will handle just about anything you can throw at it. The sleek vinyl wrap and stainless steel Bender Upgrades Package keeps it looking good while doing so.

Dropdown menu option 2: Die Package QTY, 11 or 26 Dies?

We include the most popular dies in the 11-die size package.  Here is a full list (listed as Outside Diameter x CLR… Center Line Radius, the bend size): 2.00×6.00 HD, 1.75×6.0 HD, 1.625×6.0, 1.50×6.0, 1.50×6.0 square, 1.25×4.5, 1.25×4.5 square, 1.00×3.5, 1.00×4.5 square, .875×3.5, .750×3.5. If you like fractions, that is from 3/4 to 2-inch round in quarter-inch increments, plus 1 5/8 and 7/8, as well as square in 1, 1 1/4, and 1 1/2. All include double clamps for ease of use on complex projects, and all come with our new billet CNC die spacers.

Choosing 26 sizes adds the following: .500 x 3.5, .500 square x 3.5, .625 x 3.5, .625 square x 3.5, 1.375 x 4.5, 1.50 x 4.5, 1.75 x4.5, 3/8 pipe x 3.5, 1/2 pipe x 3.5, 3/4 pipe x 4.5, 1 inch pipe x 4.5, 1 1/4 pipe x 4.5, 1 1/4 pipe x 6.0, 1 1/2 pipe x 6.0. and 1.25 x 6 HEX. When you choose the 26-die option, we also include a second complete Elite Cart with a top rack where the bender would normally attach. This provides ample storage for the 25 dies (since you will have 2 carts total to store them on)!

Need help choosing a die? CLICK HERE

Want to see the capacity of every die? CLICK HERE

Dropdown menu option 3: Add the Mandrel Package

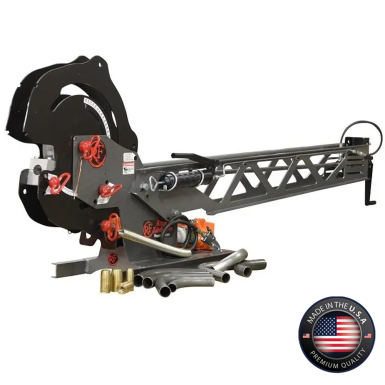

This package includes our M600 Mandrel attachment with optional Thru-Mandrel Lubrication, a full suite of mandrel accessories, and an assortment of popular mandrels. Mandrel sizes included in this package are 1″ x .049″, 1.25″ x .049″, 1.5″ x .095″, 1.5″ x .065″, 1.5″ x .070″, 1.625″ x .065″, 1.625″ x .083″, 1.75″ x .095″, 1.75″ x .083″, 2″ x .095″

Substitutions and custom sizes are available, you can find our full list of mandrel sizes HERE

More details on the Mandrel Attachment can be found HERE

Dropdown menu option 4: Add the Shop Press Package with Tooling.

By choosing yes, you are adding the complete Shop Press Package to your order. This includes every dimple die we make (full set of round and shaped) as well as a Gusset press frame and 3 “taco dies”. This is all MADE IN THE USA! This product is new for 2024 and is expected to begin shipping in Q2 2024. More information about the shop press can be found on the product listing here

A video with more details on the capabilities of the VersaPress can be seen HERE

Machine Overview:

The RogueFab model 600 series is the best value tube bender on the market. Our bender is easy to use, accurate, and portable. We have the most affordable dies in the industry, and all of them bend 180+ degrees. You can forget about “90-degree 1 shot” benders that stop at 90. Our bender can do 94 degrees in one shot and then can continue and go past 180. Are you still looking at manual tubing benders? This modern machine was designed to run air/hydraulic or electric/hydraulic (ram is included in all elite packages). Compare our maximum capacity to the competition before you buy, because nothing else comes close. This machine can bend solid steel bars up to 2″ in diameter! We have the video to prove it. Just click on “videos” in the menu at the top of this page. Our bender can also make S-Bends, which is shown in our videos section. Lead times published are for all components except the gusset press brake, which are 1 to 4 weeks depending on our order load. Gusset press brakes can ship separately, so don’t worry about that slowing down your order.

The best thing about our line of tubing benders is how they can easily grow with your shop. You get this package with the overkill-strong M625 (Extreme Heavy Duty), and be up and running without spending your whole tool budget. Down the road, there is no need to sell this machine to upgrade. You can add a mandrel attachment to bend thinner tubing (in steel, stainless, aluminum, or titanium). You can upgrade to a 9.5-degree-per-second electric hydraulic power system with auto stops for repeat parts. You can even add a backstop and rotation gauges to keep track of bend spacing and rotation between bends on 3D parts. Want to get advanced? We sell the best bending software in the business, already configured for our machines.

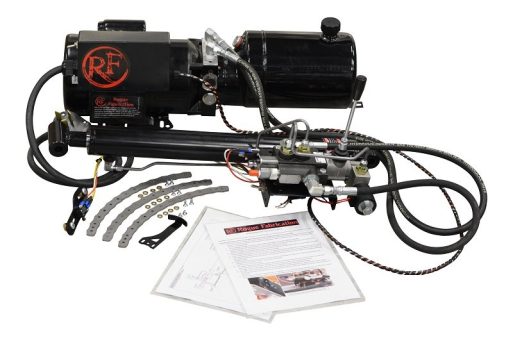

Machine hydraulic power requirements:  The 1.5HP Elec/Hydro system draws ~8.1 amps at 220-250 volts AC. The 2.0 HP system draws ~12.5 amps at 220-250 volts AC. Our systems are designed for 60hz power (contact us for 50hz options if needed). They can also run on 208V power. We can wire our 2HP system for 110V at your request, but it pulls over 25A and is a highly unpopular configuration.

Machine Dimensions:

M6xx tubing bender: (assembled, ready to bend): 12”x30” floor footprint. Overall dimensions 12”x47”x32” (LxWxH). Weight 140-200 lbs.

M6xx Bender on Cart: 22”x34” floor footprint. Overall dimensions 22”x47”x68” (LxWxH). Weight 210+ lbs (depends on cart contents).

M6xx Mandrel Bender on Cart: 22”x34” floor footprint. Overall dimensions 22”x105”x68” (LxWxH). Weight 295+ lbs (depends on cart contents).

Our web page is the single most complete source for information on tube bending. Read all of it in our Technical Index (LINK).

Check out a full project built with the M625!

Please read our terms and FAQ for complete information about warranty, returns, and more.
