Description

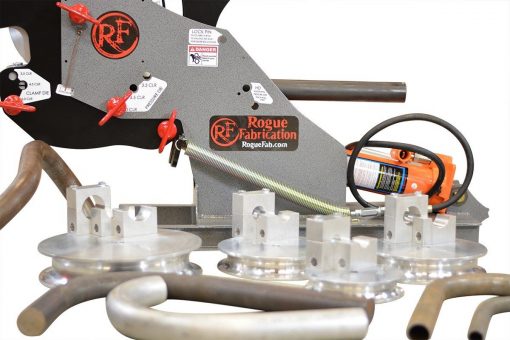

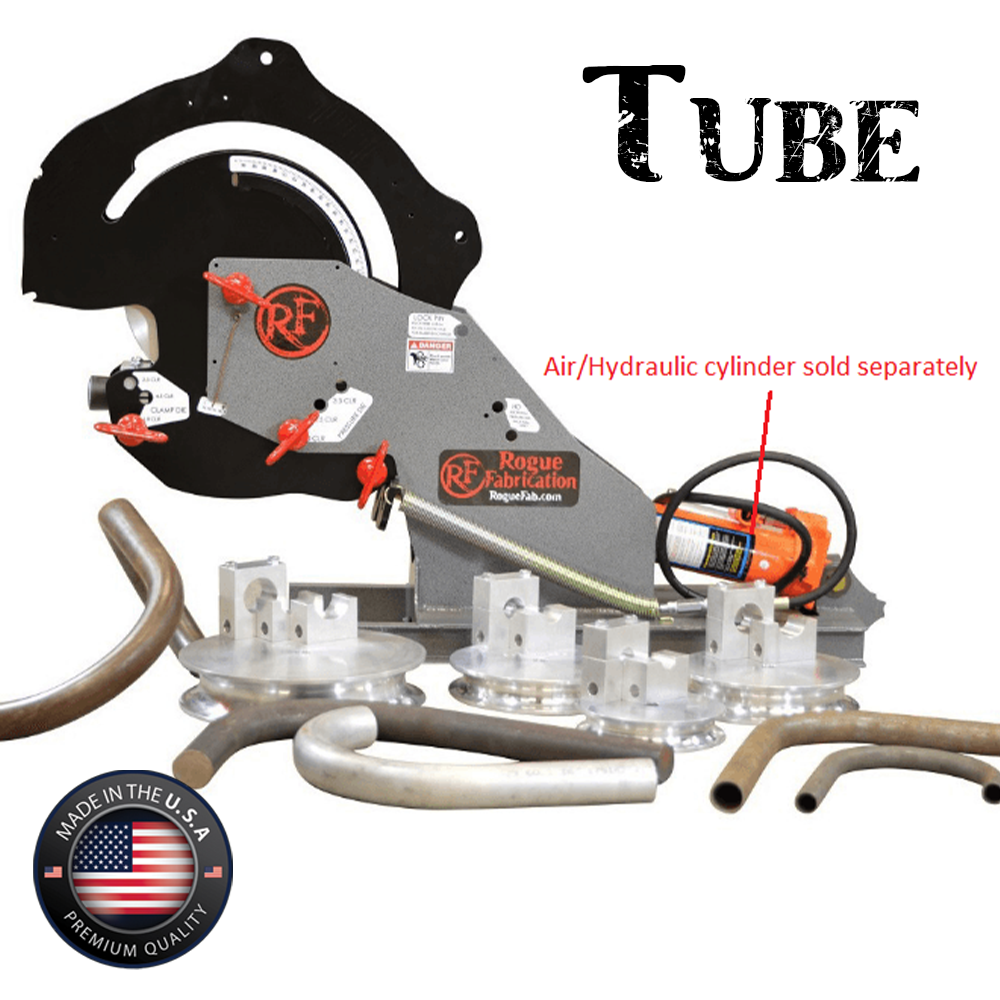

Now you can get the Rogue Model 605 (formally the HD) or the Model 625 (formally the XHD) Tubing Bender with a full range of dies! Our tradesman set is ideal for fabrication shops or serious enthusiasts. The Standard package includes the 5 die sizes listed below with standard pressure dies. The Pro package includes the same 5 dies with bolt-on die spacers to ease die changes and upgraded pressure rollers to reduce the risk of drag marks or marring on your material. This product is protected by US Patent No. 11529663.

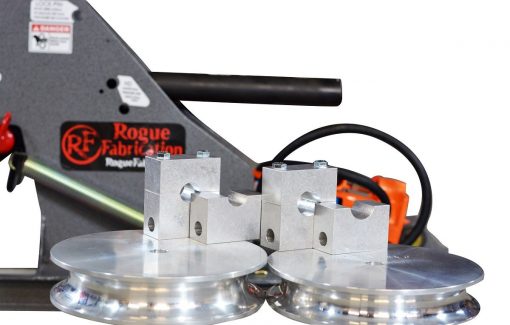

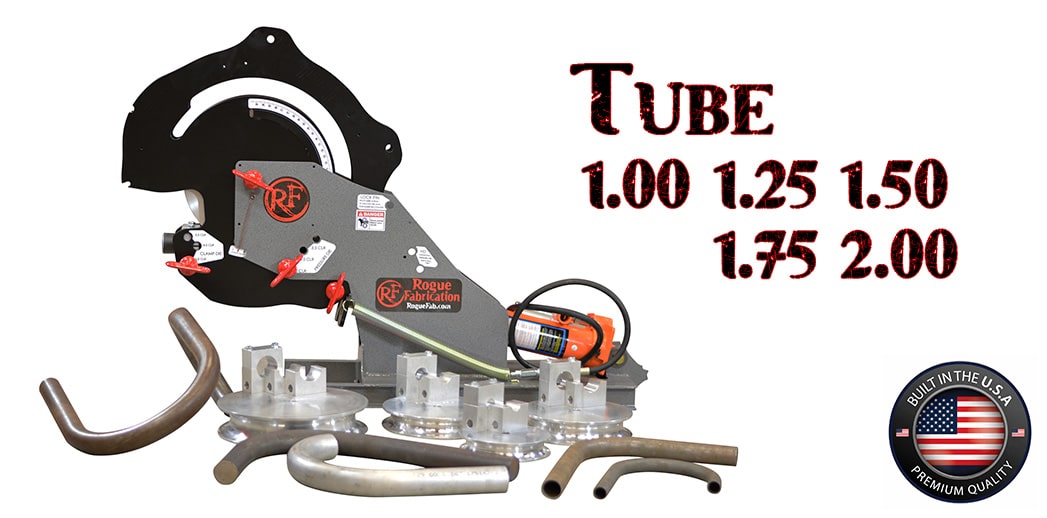

Dies included (e-mail or call for substitutions) are:
*2.00×6.00″ CLR (Center Line Radius) HD Die Set
*1.75×6.00″ CLR HD Die Set
*1.50×4.50″ CLR HD Die Set
*1.25×4.50″ CLR Die Set
*1.00×3.50″ CLR Die Set
The RogueFab model 600 series tubing bender is the best value on the market. Our bender is easy to use, accurate, and portable. We have the most affordable dies in the industry, and all of them bend 180+ degrees. You can forget about “90 degree 1 shot” benders that stop at 90. Our bender can do 94 degrees in one shot, and then they can continue and go past 180. Are you still looking at manual tubing benders? This modern machine was designed to run air/hydraulic (ram is sold separately, $99-195). Compare our maximum capacity to the competition before you buy, because nothing else comes close. This machine can bend solid steel bar up to 2″ diameter! We have the video to prove it. Just click on “videos” in the menu at the top of this page. Our bender can also make S-Bends, which is shown in our videos section.
The best thing about our line of tubing benders is how they can easily grow with your shop. You can get the machine now as the basic M601 or the overkill-strong M625, and be up and running without spending your whole tool budget. Down the road, there is no need to sell this machine to upgrade. You can add a mandrel attachment to bend thinner tubing (in steel, stainless, aluminum, or titanium). You can upgrade to pressure roller dies for more complex bend geometry and bending aluminum. You can upgrade to a 9.5 degree per second electric hydraulic power system with auto stops for repeat parts. You can even add a backstop and rotation gauges to keep track of bend spacing and rotation between bends on 3D parts. Need storage space? We sell cart kits and completed carts for our machines. Want to get advanced? We sell the best bending software in the business, already configured for our machines. This tubing bender is no bait-and-switch. It comes with EVERYTHING in the pictures except for the hydraulic ram. You can go buy the ram from Harbor Freight to save money on shipping, or get one right off our web page. Our web page is the single most complete source for information on tube bending. Read all of it in our Technical Index (LINK).
Machine hydraulic power requirements: The air/hydraulic option consumes 6 cubic feet of compressed air per minute (CFM) at 110 PSI, and requires no electricity at all. As long as your compressor has a storage tank, you don’t necessarily need 6+ CFM. Our other hydraulic systems are Electric/Hydraulic. The 1.5HP Elec/Hydro system draws ~8.1 amps at 220-250 volts AC. The 2.0 HP system draws ~12.5 amps at 220-250 volts AC. Our systems are designed for 60hz power (contact us for 50hz options if needed). They can also run on 208V power. We can wire our 2HP system for 110V at your request, but it pulls over 25A and is a highly unpopular configuration.
Machine Dimensions:
M6xx tubing bender: (assembled, ready to bend): 12”x30” floor footprint. Overall dimensions 12”x47”x32” (LxWxH). Weight 140-200 lbs.
M6xx Bender on Cart: 22”x34” floor footprint. Overall dimensions 22”x47”x68” (LxWxH). Weight 210+ lbs (depends on cart contents).
M6xx Mandrel Bender on Cart: 22”x34” floor footprint. Overall dimensions 22”x105”x68” (LxWxH). Weight 295+ lbs (depends on cart contents).
Not sure what a pressure roller die is? Need help with the options? Learn everything you need to know in under 4 minutes:
Do you want to see what our billet spacers do? No problem. Watch this short video and you’ll also see just how easy it is to change dies in your next tube bender:
Capabilities of M605/625 metal tube bender
We have the most affordable dies in the industry, and all of them bend 180+ degrees. You can forget about “90 degree 1 shot” benders that stop at 90. Our bender can do 94 degrees in one shot (m601 with MOST hydraulics and m605 and m625 models with any hydraulics we sell), and then all models continue and go past 180.
Bends Carbon and Stainless Steel
The M605/625 metal bender has been tested on carbon and stainless steel and works very well. Our line of tubing benders have an unmatched range of wall thicknesses that they can successfully bend due to their extreme capacity for thick walled tube on the M625 and their amazing thin wall range when equipped with the Rogue Fab Mandrel Attachment.
Other Supported Materials
Our M605 and M625 can also make S-Bends, which is shown in our videos section. Furthermore, it can bend:
- brass
- copper
- aluminum (round/square tube and pipe)
- thin-walled titanium for turbo manifold work and tubular titanium frames (when using our Mandrel Attachment)
While this metal tube bender can bend super thick DOM tubing, it also bends thin 4130 chromoly for roll cages, and can still make accurate 3D bends with ease on either material.
Are you still looking at manual tubing benders?
This modern machine was designed to run air/hydraulic (ram is sold separately, $99-249). Compare our maximum capacity to the competition before you buy, because nothing else comes close.
Flexible Design
The best thing about our line of tubing benders is how they can easily grow with your shop. You can get the machine now as the M605 or the overkill-strong M625, and be up and running without spending your whole tool budget.
Down the road, there is no need to sell this machine to upgrade:

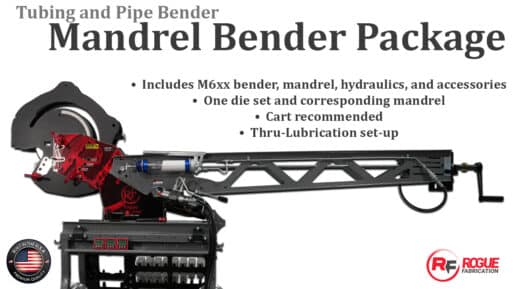

- You can add a mandrel attachment to bend extremely thin tubing.
- You can upgrade to pressure roller dies for more complex bend geometry and bending aluminum
- You can upgrade to a 9.5 degree per second electric/hydraulic power system with auto stops for repeat parts.
- You can even add a backstop and rotation gauges to keep track of bend spacing and rotation between bends on 3D parts.
Need storage space? We sell cart kits and completed carts for our machines. Want to get advanced? We sell the best bending software in the business, already configured for our machines.
This tubing bender is no bait-and-switch. It comes with EVERYTHING in the pictures except for the hydraulic ram. You can go buy the ram from Harbor Freight to save money on shipping, or get one right off our web page. Our web page is the single most complete source for information on tube bending. Read all of it in our Technical Index (LINK).
- Need help choosing a die? – CLICK HERE
- Want to see the capacity of every die? – CLICK HERE
Are you worried about learning how to bend tube? Or learning a new machine? Ours is the easiest to use, and able to make to most complicated bends. Let us show you in under 7 minutes:
Want to see a whole project from start to finish, and even more bending tricks that are 100% unique to our design? Watch this video:
How much work is it to weld it together? Very little, it’s so easy a novice welder can do it:
